Wholesale PriceList for ASTM A193 B16 All Threaded Rods Threaded Bars to Bhutan Manufacturers

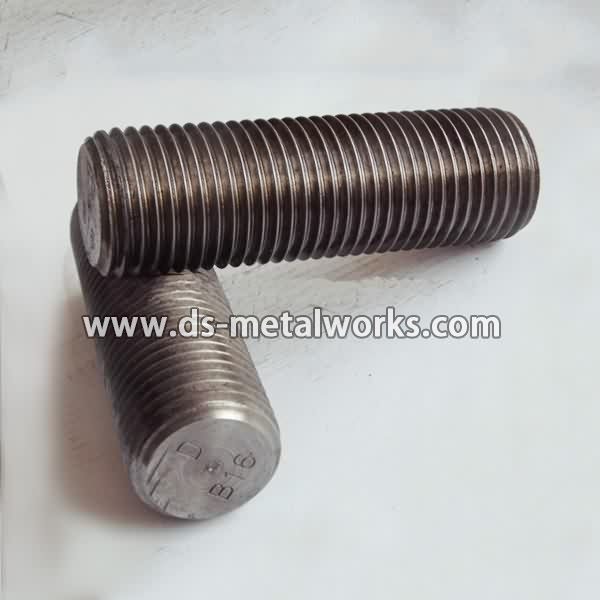

ASTM A193/A193M B16 All Threaded Rods All Threaded Bars API Flange Valve Wellhead All Threaded Stud Bolts Alloy steel bolting for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.   Standard: IFI-136, DIN975 Inch Size: 1/4”-4” with various lengths Metric Size: M6-M100 with various lengths Other Available Grade: ASTM A193/A193M B7, B7M, B16 B8 Class 1 & 2, B8M Class 1 & 2, ASTM A320/A320M L7, L7M, L43, B8 Class 1 & 2, B8M Class 1 & 2, and so on. Finish: Plain, Black Oxide, Zinc Plated, Zinc Nickel Plated, Cadmium Plated, PTFE etc. Packing: Bulk about 25 kgs each carton, 36 cartons each pallet Advantage: High Quality and Strict Quality Control, Competitive Price,Timely Delivery; Technical Support, Supply Test Reports Please feel free to contact us for more details.
    • Wholesale PriceList for ASTM A193 B16 All Threaded Rods Threaded Bars to Bhutan Manufacturers Related Video:



    Оборудование для изготовления гроверных шайб



    How do you use sae flanges? What do you need to take note of for correct and safe installation? https://www.chuankok.com/sae-flanges.html

    SAE flanges are made to ISO 6162/J518 standards and are commonly called SAE 61 or SAE 62 High Pressure Pipe Flanges. In order to use SAE flanges properly, there is a 4 step process as per described in the video.

    Step 1:
    Ensure the sealed surface are free from scratches and contamination.
    Lubricate with system fluid or any compatible lubricant on the surface of O-ring portion.

    Step 2:
    Position the flange.
    Place the washer on cap screws and bolt through the bolt holes.​

    Step 3:
    Tighten the cap screws by hand.
    Torque the cap screws gradually in diagonal sequence till the appropriate torque level based on below torque table.

    Step 4:
    Tighten the cap screws according to the below torque table.
